Product Description
This intake offers horsepower and torque gains throughout the powerband, with peak gains of up to 16 crank horsepower and 13 ft-lbs of torque on stock turbo tunes, and over 35 crank horsepower and 24 ft-lbs with an upgraded turbocharger.
034Motorsport’s engineers spent extensive effort to develop a complete cold air intake solution for the TT RS that yields horsepower and torque gains over the well-designed factory airbox, ultimately resulting in this beautifully-manufactured Carbon Fiber Cold Air Intake System.
Product Description:
034Motorsport’s engineers spent extensive effort to develop a complete cold air intake solution for the TT RS that yields horsepower and torque gains over the well-designed factory airbox. During the development process, many iterations were designed, prototyped, and tested, which resulted in this beautifully-manufactured X34 Carbon Fiber Closed-Top Cold Air Intake System.
Maximizing Airflow:
034Motorsport engineers first created a CFD-optimized carbon fiber intake tube, which is a direct, high-performance replacement for the plastic factory accordion hose. Using CAD software and 3D scanning technology, 034Motorsport was able to maximize the cross-sectional area of the intake tube while being mindful of space constraints, including the factory high-pressure fuel pump and firewall. The resulting part is a functional work of art - maximizing performance given the factory space constraints and featuring smooth transitions that ensure optimal airflow to the turbo inlet.Minimizing Intake Air Temperature:
To ensure that the X34 Carbon Fiber Closed-Top Cold Air Intake System draws in cool, dense air, the system includes a closed carbon fiber airbox to replace the upper airbox. Bolting to the factory lower airbox, this airbox allows the high-flow conical filter to breathe cold air from the factory inlet duct before the radiator. Both the carbon fiber heat shield and carbon fiber intake tube feature a fiberglass backing layer to aid in isolating cold, dense intake air from the heat of the engine bay.
Performance Air Filter:
The X34 Carbon Fiber Closed-Top Cold Air Intake System houses a high-flow conical air filter with double-layer pleated cotton filtration medium. This air filter design offers increased flow through an enlarged filtration surface, while ensuring superior filtration. Care was taken during the engineering and design process to ensure this filter is not shrouded inside the airbox like other intakes on the market that brag about big filters crammed into areas that are too small for these large filters to adequately flow.
OEM+ Fit & Finish
034Motorsport carefully selected the carbon fiber weave on the intake tube and upper airbox heat shield to match the factory carbon fiber engine trim found in the Audi TT RS & RS3 2.5 TFSI engine bay. The X34 Carbon Fiber Closed-Top Cold Air Intake System for the Audi TTRS 8J and RS3 8P 2.5 TFSI was designed to fit like a factory part, and mates directly to the turbo inlet pipe and factory lower airbox to provide an OEM+ look.
Dyno-Verified Wheel Horsepower & Torque Gains
034Motorsport's engineering and development efforts were validated on multiple vehicles using our Mustang AWD Dynamometer to ensure that the X34 Carbon Fiber Closed-Top Cold Air Intake System provided substantial increases in horsepower and torque on both stock turbo vehicles and ones with upgraded turbo kits alike.
Peak Wheel Horsepower & Torque with Stage 2:Stock Intake:
- 377 Wheel Horsepower
- 421 Wheel Foot-Pounds of Torque
- 390 Wheel Horsepower
- 429 Wheel Foot-Pounds of Torque
Stock Intake:
- 460 Wheel Horsepower
- 424 Wheel Foot-Pounds of Torque
- 491 Wheel Horsepower
- 443 Wheel Foot-Pounds of Torque
Product Features & Details:
Features:- Fits both right hand drive and left hand drive configurations
- Meets regulations in countries that do not allow exposed air filters
- High-quality carbon fiber construction
- Carbon fiber airbox top blister provides clearance for air filter without engine bay bulk
- High gloss epoxy finish
- OEM+ fit a appearance
- Dyno-proven horsepower and torque gains
- Increased engine and induction sounds
- Quieter than similar open-top intakes
- Improved throttle response

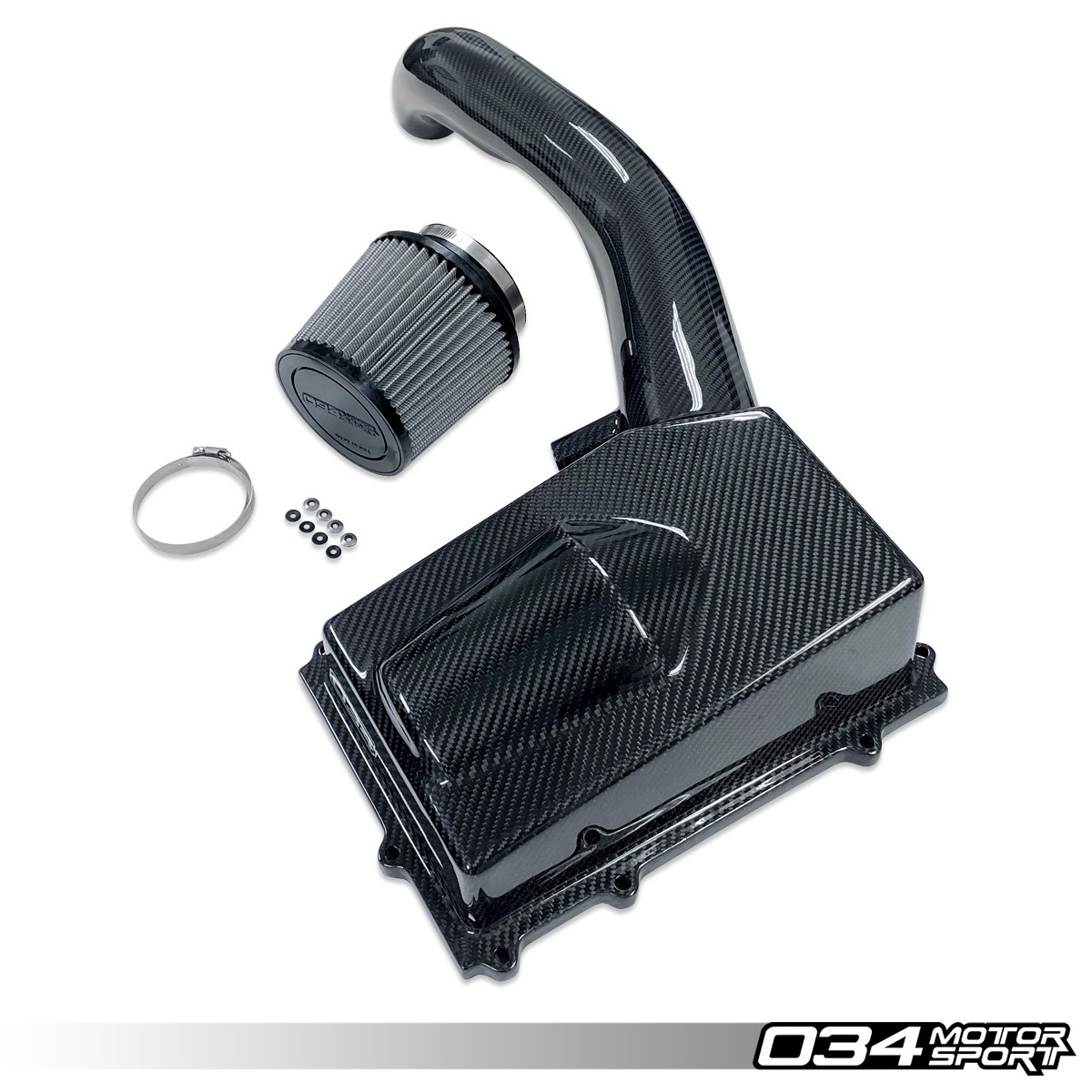

- 034Motorsport X34 Intake Tube
- 034Motorsport X34 Closed Upper Airbox Heat Shield
- 034Motorsport Performance Air Filter
- Installation Hardware
2009 - 2013 Audi TTRS 2.5 TFSI (8J)
2011 - 2013 Audi RS3 2.5 TFSI (8P)
Emissions Disclaimer:
This product is sold for racing use as well as use on vehicles not registered for on highway use. By purchasing this product, you understand that this product is sold for racing use as well as used on vehicles not registered for on highway use, and that it is not legal for use on highway or street vehicles.
Warranty: All 034Motorsport products are covered by our industry-leading 1 Year Warranty against defects in materials or workmanship. The 1 Year Warranty does not cover natural discoloration or cosmetic imperfections on carbon fiber finishes which occur over time.
